EIFS Feature Project
Premium EIFS Exterior Transformation
Complete exterior insulation and finish application designed for long-term envelope performance.
Drainage EIFS · Authorized DuROCK PUCCS Installer
EIFS & ExteriorInsulation SystemsToronto, GTA & Ontario
Authorized DuROCK PUCCS drainage EIFS installers. Continuous insulation, engineered drainage cavity, and architectural finish options in one complete building envelope system.
DuROCK PUCCSDrainage EIFSR-5 to R-22OBC / NBC CompliantNew ConstructionRetrofit
DuROCK PUCCS System
R-5 to R-22
EPS Insulation Range
10mm GDDC
Drainage Cavity Depth
37% Open
Drainage Cavity Coverage
CCMC
Canadian Evaluation
Compatible Substrates
Wood FrameSteel StudMasonryConcreteICFRetrofit
Exterior Transformation Standard
Designed for Toronto Weather,
Delivered as Premium Exterior Work
EIFS is more than a finish upgrade. We engineer the envelope for drainage, insulation, and long-term stability, then deliver an architectural surface that elevates curb appeal and perceived property value.
Drainage EIFS sequencing with code-aligned detailing
Thermal-performance planning based on building goals
Architectural finishes with disciplined site execution
Process Step

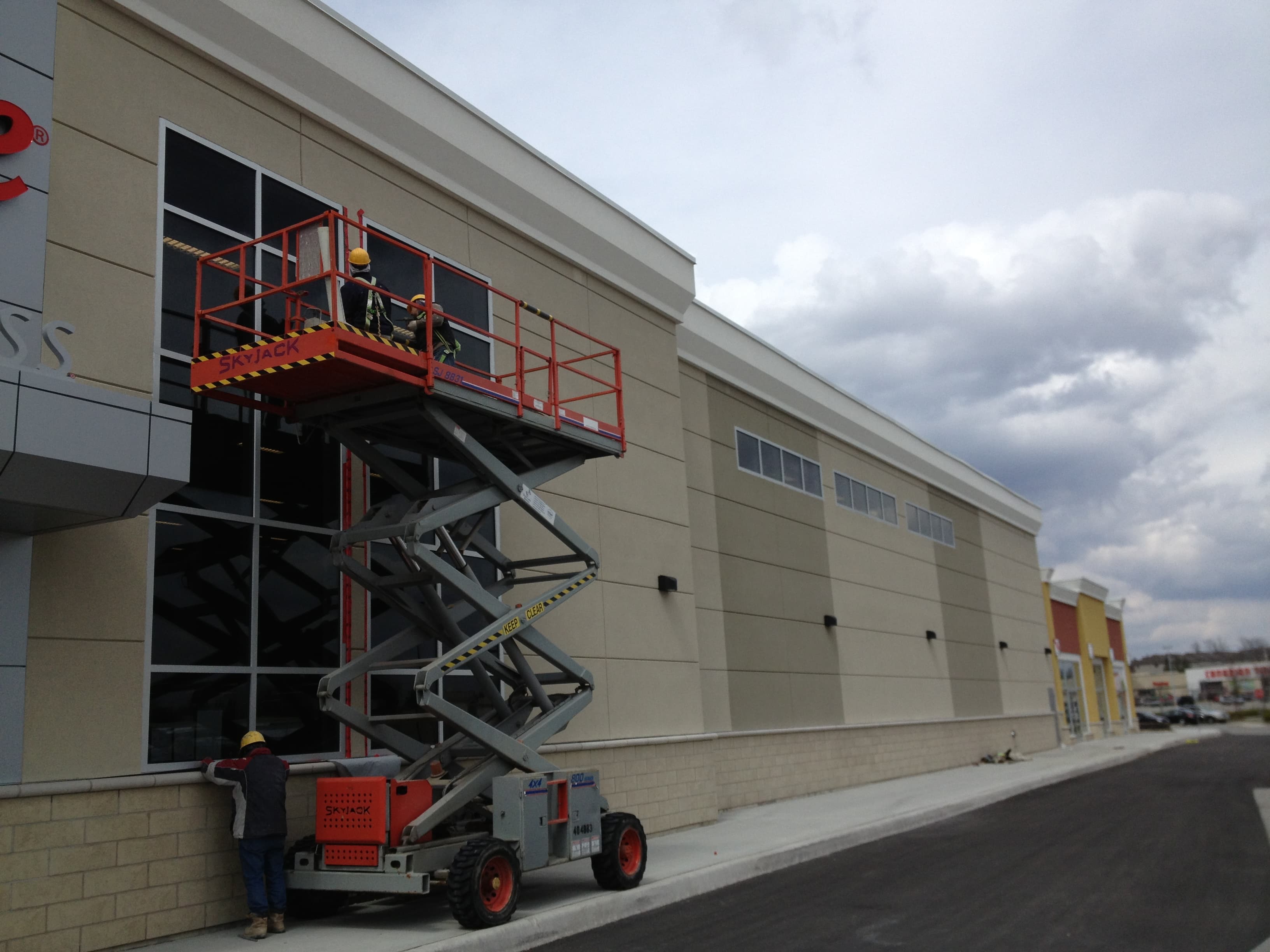

EIFS Installation Progress
Active lift and facade sequencing during insulation and exterior system application.
The 5-Layer System
Built from the
Wall Out
5
Finish Coat
Acrylic or silicone finish — unlimited colours and textures
4
Base Coat + Fibreglass Mesh
Impact-resistant reinforced base — standard and heavy-duty mesh available
3
EPS Insulation Panel + GDDC
R-5 to R-22 EPS foam with Geometrically Defined Drainage Cavity (10mm deep, 37% open)
2
Adhesive + Fasteners
DuROCK adhesive mortar with mechanical fastening for wind and seismic compliance
1
Substrate + WRB
Existing wall with weather-resistant barrier — compatible with wood, steel, masonry, ICF
Why PUCCS
What You Get With DuROCK PUCCS
Real Insulation Value
R-5 to R-22 continuous EPS insulation eliminates thermal bridging through studs — something interior insulation cannot achieve.
Drainage Cavity (GDDC)
The 10mm deep Geometrically Defined Drainage Cavity channels water down and out — eliminating the trapped moisture that destroys traditional EIFS.
Code Compliant
DuROCK PUCCS meets OBC, NBC, and ASHRAE 90.1 requirements. Accepted by major insurance carriers and mortgage lenders across Ontario.
Works on Any Substrate
New construction wood frame, steel stud, masonry, concrete, and ICF. PUCCS also retrofits over existing stucco without full tear-off.
Unlimited Design Options
Hundreds of colours and textures — sand, dash, stone, smooth, rustic — at no premium. The finish coat is where your vision becomes the building.
Low Maintenance
Acrylic and silicone finish coats resist cracking, fading, and mould. Minimal maintenance compared to wood, vinyl, or painted stucco.
System Variants
PUCCS for Every Project Type
We recommend the right PUCCS variant after assessing your substrate, project type, and insulation requirements.
PUCCS Residential
The standard residential system. Suitable for wood-frame homes, townhouses, and low-rise multi-family. R-5 to R-14 insulation range.
R-5 to R-14 EPSWood or steel studOBC Part 9 compliant
PUCCS Commercial / Mid-Rise
Heavy-duty mesh and higher insulation values for commercial, institutional, and mid-rise applications. OBC Part 3 and NBC compliant.
R-10 to R-22 EPSSteel stud or masonryNBC / OBC Part 3
PUCCS NC (New Construction)
Engineered for new-construction projects with continuous insulation requirements. Full thermal envelope solution.
Continuous insulationNew construction focusedASHRAE 90.1 compliant
PUCCS ICF
Designed for Insulated Concrete Form construction. Provides the exterior finish layer over ICF walls with compatible adhesion.
ICF substrate compatibleMechanical fastener freeSeamless thermal wrap
How We Install
The Installation Process
01
Site Assessment & Design
We assess the existing substrate, measure the building, and work with you on insulation value, colours, and texture. Substrate compatibility is confirmed before quoting.
02
Detailed Quote
Fixed price with full material and labour breakdown. We specify the PUCCS variant, EPS thickness (R-value), mesh weight, and finish product.
03
Substrate Prep
Existing cladding is inspected or removed as required. Weather-resistant barrier (WRB) is installed or verified. Trim and transition details are mapped out.
04
EPS Panel Installation
DuROCK PUCCS panels are adhered and mechanically fastened per engineering specs. Panels are cut and fitted around windows, doors, and penetrations.
05
Base Coat & Mesh
Fibreglass reinforcing mesh is embedded in DuROCK base coat. All corners and edges receive additional reinforcement.
06
Finish Coat
Selected finish coat is applied in the specified texture. Colour consistency is maintained across the full elevation.
07
Caulking & Trim
Sealant is applied at all transitions, windows, doors, and penetrations. Trim details are finished.
08
Final Inspection
We walk every elevation with you. Deficiencies are corrected before the job is closed.
Authorized
DuROCK PUCCS Installer
R-5–R-22
Insulation Range
OBC/NBC
Code Compliant
10-Yr
Workmanship Warranty
Project Visuals
EIFS Exterior Work Gallery

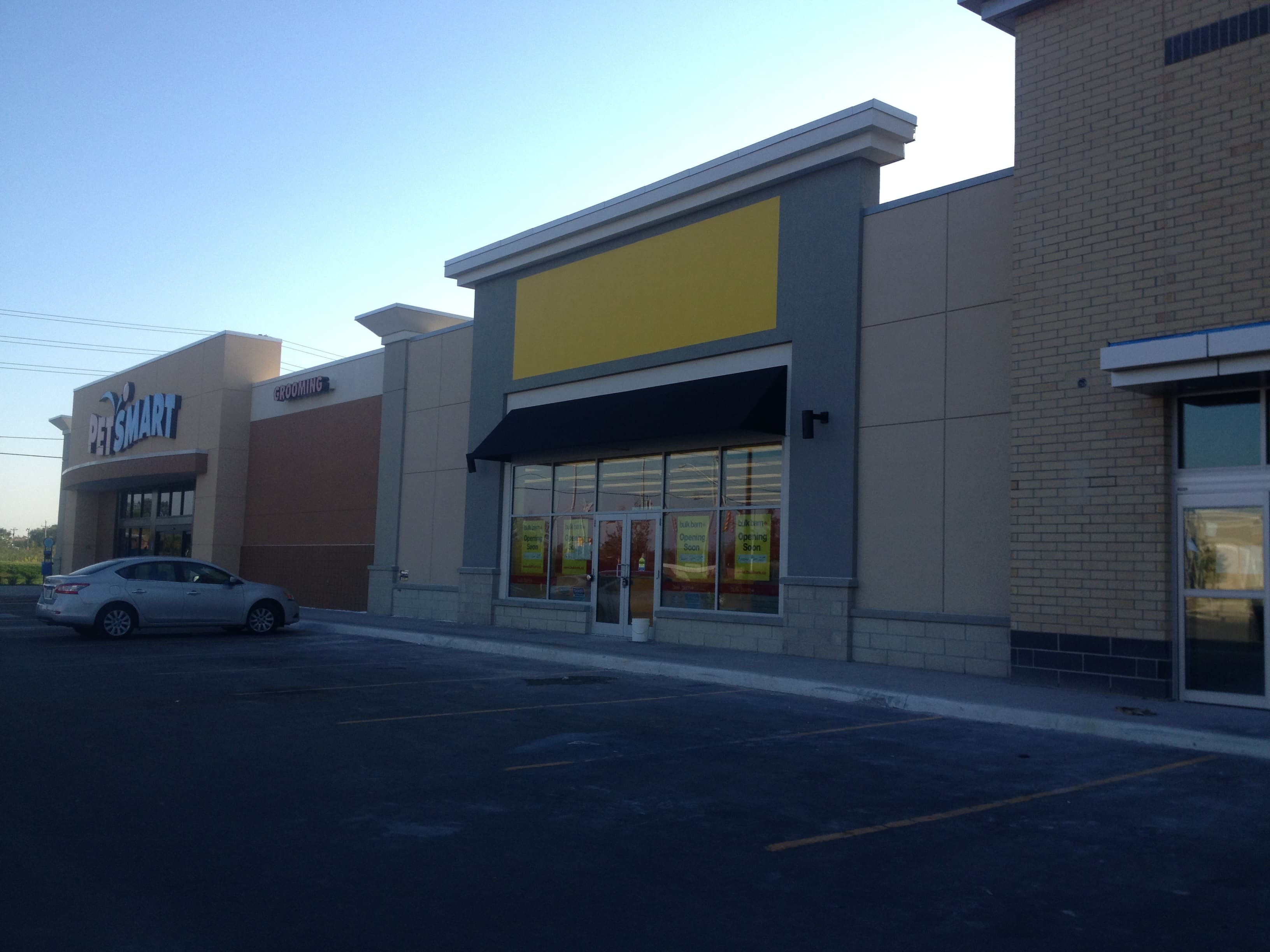

Process Step
Board, Mesh, and Build-Up
System layering prepared for reinforced base coat and finish continuity.

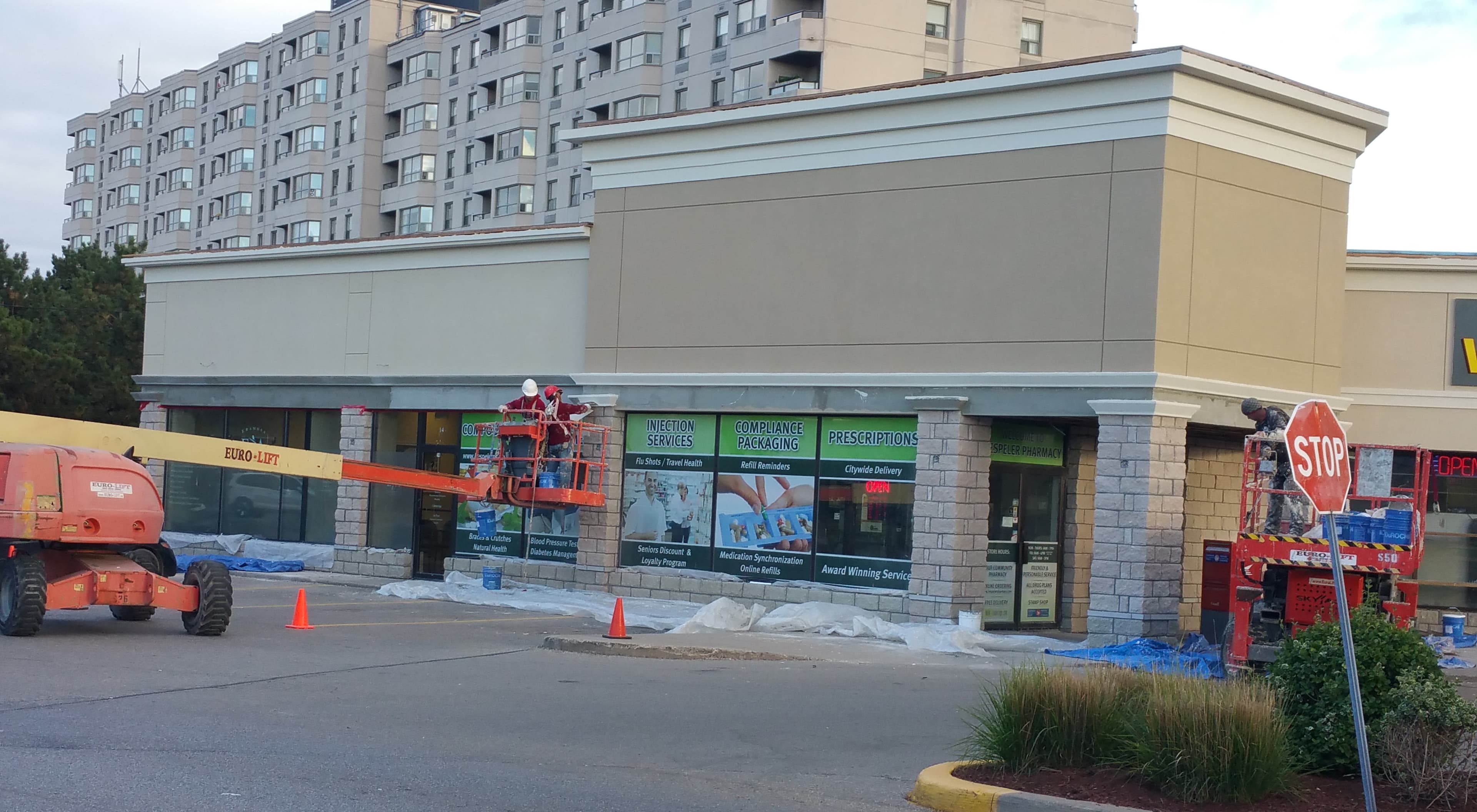

Commercial Application
Commercial EIFS Exterior Scope
Retail and mixed-use facade environments requiring coordinated exterior execution.

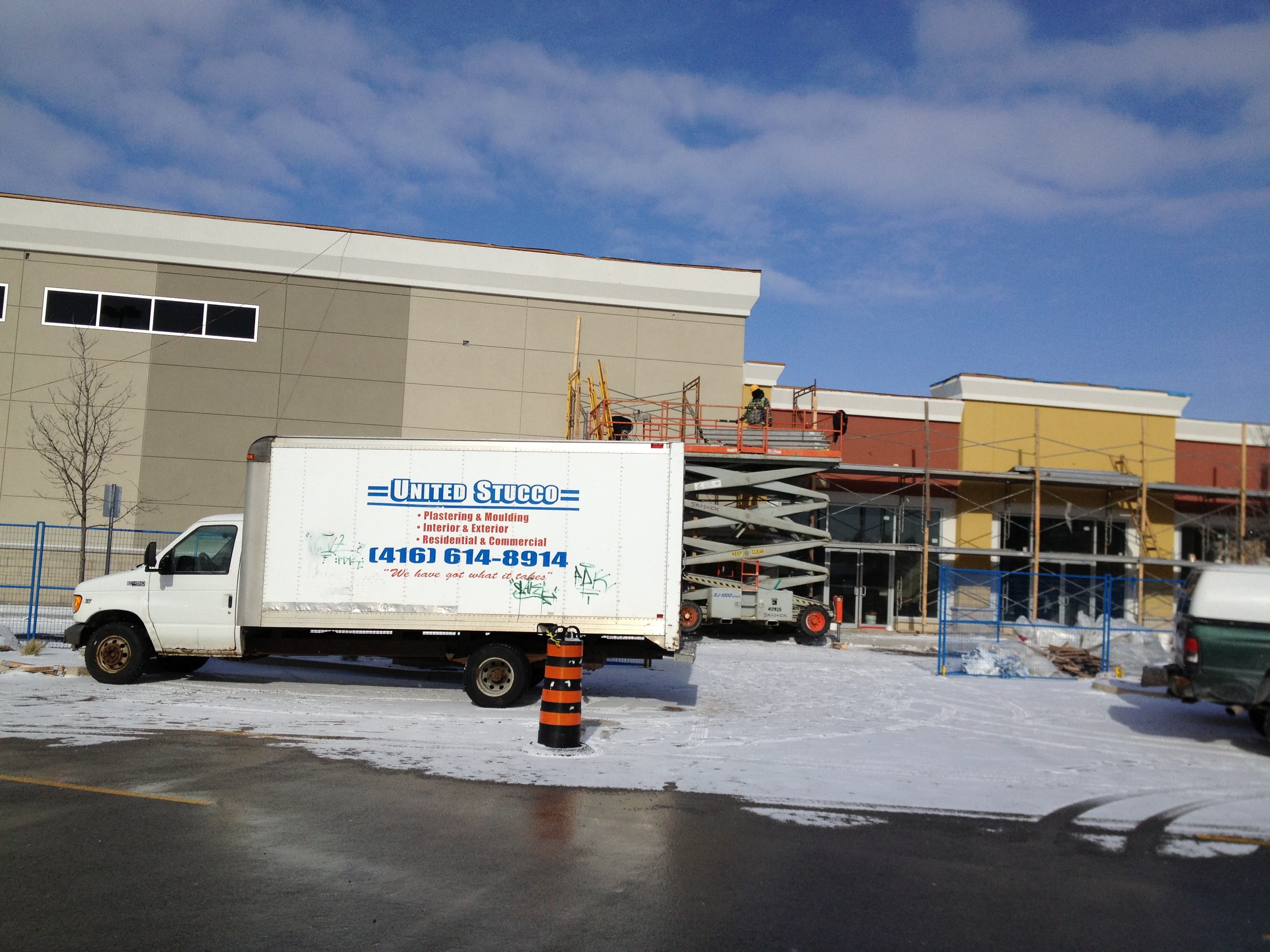

Finish Detail
Material and Finish Detail
Exterior finish quality and detailing standards applied across broad project elevations.
Consultation Priority
Planning An EIFS Retrofit Or New Build Envelope?
Request a free assessment and we will recommend the right EIFS build-up, insulation range, and installation scope.
Next Action
Response target: same business day for urgent exterior issues and weather-related damage.
FAQ
EIFS Questions Answered
What is EIFS and how is it different from traditional stucco?
EIFS (Exterior Insulation and Finish System) is a multi-layer cladding system that includes rigid foam insulation as a core component. Traditional 3-coat stucco is applied directly to the substrate with no insulation layer. EIFS provides continuous thermal insulation, better crack resistance, and a lighter cladding weight. The DuROCK PUCCS system adds a drainage cavity not found in early EIFS generations.
Will EIFS increase my home's energy efficiency?
Yes, measurably. Continuous exterior insulation eliminates thermal bridging through studs — a major source of heat loss that interior insulation cannot address. Depending on your existing insulation and EPS thickness chosen, you can expect a noticeable reduction in heating and cooling costs.
Is DuROCK PUCCS accepted by Ontario building codes?
Yes. DuROCK PUCCS is compliant with OBC Part 9 (residential) and Part 3 (commercial/mid-rise), NBC, and ASHRAE 90.1. It carries Canadian Construction Materials Centre (CCMC) evaluation. Major insurance carriers and mortgage lenders in Ontario accept it.
Can EIFS be installed over my existing stucco?
In many cases, yes. The existing stucco must be structurally sound — no hollow sections, active moisture intrusion, or delamination. We assess the existing surface before quoting. If the existing cladding is compromised, it will need to be removed first.
How long does EIFS installation take?
A typical single-family home takes 2–4 weeks depending on size and complexity. Commercial projects vary by scope. Weather is a factor — finish coats cannot be applied in freezing temperatures or heavy rain.
What maintenance does EIFS require?
Minimal. Inspect caulking and sealants at windows and penetrations every 5–7 years. Wash the surface with low-pressure water as needed. Avoid high-pressure washing directly at joints. The EPS and finish coat themselves are not a maintenance item under normal conditions.
